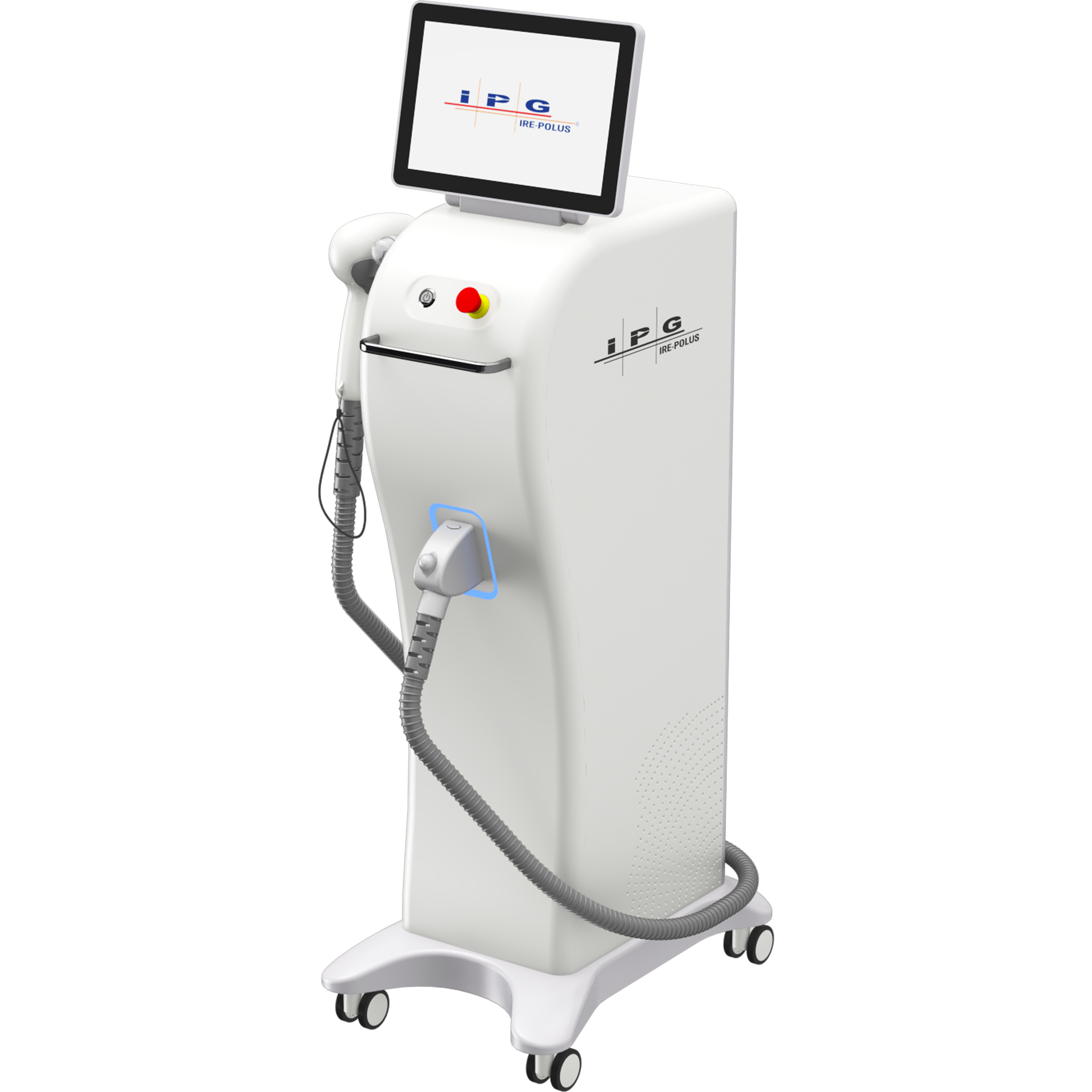

DiodeLase HR

АППАРАТ ДЛЯ ЭПИЛЯЦИИ

НОВЫЙ ПОДХОД К КЛАССИЧЕСКОЙ ТЕХНОЛОГИИ

Обзор
Обзор Особенности Характеристики

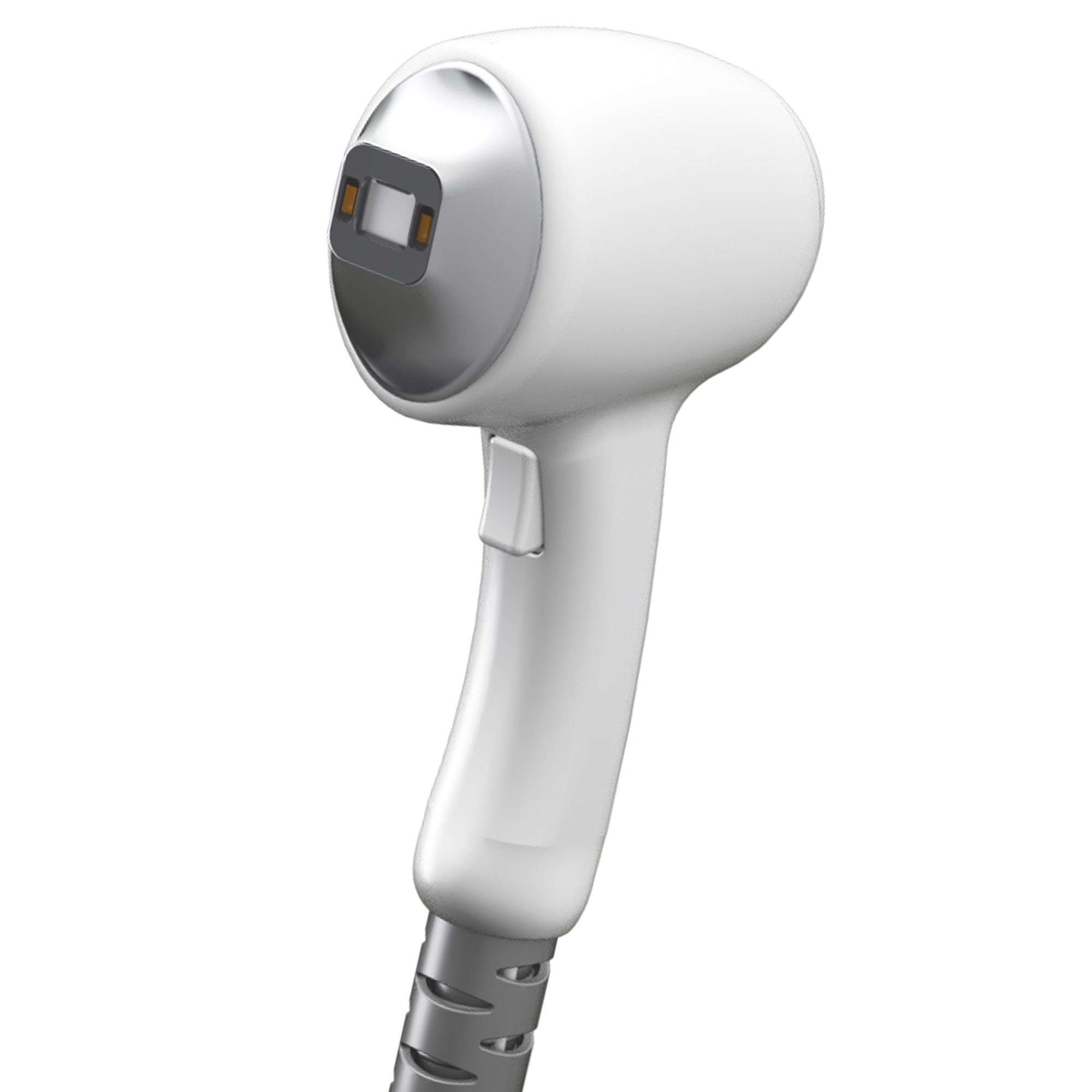

Дермоскан для осмотра кожи

Понятный интерфейс



Автоопределение фототипа



Предустановленные режимы



Дермоскан







Встроенное
охлаждение

Длина волны, мкм 0,8
Мощность, Вт 600 1000
Флюенс, Дж/см² 10 ... 80
Длительность импульса, мс 20 ... 200
Частота повторения, Гц 1 ... 10
Размер пятна, мм 11*13
sdfsdfsdf
sdfsdfsdf sdfdsf Specifications sdfsdfsdf asdfsdf Software

In addition to the standard X-Y-Z axes and laser process head, there are several optional modules and accessories that may optimize the functionality of the system in your specific application. Below are some of the the most popular options.. Please contact IPG directly if you have additional requirements

Rotary Stage, A or
C axes, Direct Drive

High-precision, high-speed rotary stage with continuous motion synchronized to X-Y-Z axes

  • Servo-driven rotary stage
  • Brushless direct drive.
  • Travel +/- 360° continuous
  • Rotation speed: 600 rpm max
  • Accuracy: 10 arc-sec
  • Bi-directional repeatability: 4 arc-sec
  • Pneumatic ER25 Collet Chuck
  • Includes an additional axis of motion control

Rotary Stage, A or C axes, Gear Drive

Rotary stage with continuous motion synchronized to X-Y-Z axes

  • Servo gear/belt-driven rotary stage
  • Travel +/- 360° continuous
  • Rotation speed: 30 rpm max
  • Accuracy: +/- 180 arc-sec
  • Bi-directional repeatability: +/- 45 arc-sec
  • 5C Collet, 3 Jaw Chuck
  • Includes an additional axis of motion control

Rotary Stage, B axis, Gear Drive

Rotary stage with continuous motion

  • Servo gear/belt-driven rotary stage
  • Travel +/- 90° continuous
  • Rotation speed: 30 rpm max
  • Accuracy: +/- 180 arc-sec
  • Bi-directional repeatability: +/- 45 arc-sec
  • Includes an additional axis of motion control
Coaxial Viewing Package

Camera system aligned with laser beam axis.

  • Coaxial viewing system is integrated into laser head to provide live feedback on part positioning
  • Package includes software with crosshair generator to display video feed
Power Meter

Laser power meter with stage-mounted detector for periodic verification of power on target. Useful for verifying performance of process head optics and coverslide.

Fume Extractor
  • High flow-rate fume extractor for collection of smoke, fumes and air-borne debris.
  • Flow rate of 380 m3/hr (220 cfm)
  • 3-Stage filtering
  • Reverse flow filter technology
  • Real-time airflow reading
  • Remote diagnostics
Automatic Doors
  • Pneumatic actuator to automate slide door which can be controlled via HMI software or G-code

Multi-Axis Workstation Software

The Multi-Axis family of workstations are high-accuracy platforms designed to take advantage of the high beam quality found in IPG’s fiber lasers. Systems can be configured using any IPG laser, with laser processing heads available for welding, cutting and scanning applications. System options can include both basic and smart vision packages, along with part identification and process verification hardware.

The Multi-Axis software integrates control of the laser, motion systems and all system components to provide easy programming of the tool using G/M code commands that are familiar to CNC machine programmers.

HMI (Human Machine Interface)

The software that runs the Multi-Axis Workstations is a customized application called HMI (Human Machine Interface) that runs as a Microsoft Windows® 7 application. It is preloaded and tested at the IPG factory and resides in the workstation’s hard drive.

The HMI program consists of four primary regions:

  • System Status Indicators – Providing a constant overview of the machine status, regardless of function selected
  • Function Selection Bar – Providing primary selection of module operation
  • Function Control Interface – Allows intuitive set up of configuration and operating parameters
  • Manual Control Bar – Enabling manual operation of the systems global functions

Three Password-Protected Levels of System Control: Engineer, Maintenance and Operator.

User screens enable the Engineer, acting as system administrator, to easily set permission levels for each HMI screen for each level of operator and set corresponding passwords.

The system can operate in manual or programmed mode, and has functions to enable Dry-Run (execution of the full program but with the laser not turned on) and Optional Stop – that will allow a pause in the processing cycle for part inspection and other uses.

Used in combination with standard G-code programming, these capabilities provide the user with a comprehensive, easy-to-use programming and operator interface.
